GRP GRATINGS



GRP gratings are used wherever conventional surface treads (such as steel or wood) meet their limits. They are produced with a square mesh as standard, or also with a rectangular mesh for special applications. Glass rovings are used as a reinforcement. Due to their high resin content, CTS grating systems offer a very good chemical resistance.

They can also be produced in all RAL colours and with a translucent style. The surfaces of the grates can be provided in the following variations: concave, sanded, smoothed, enclosed – with a cover plate or as a sandwich element.

Pultruded grating systems are available for applications with large spans and high load. These are produced from pultruded GRP profiles, bonded together, wedged and pinned. The constructive design is in accordance with the DIN standards 24357-1 to 3.

All CTS gratings can be adapted quickly and easily to the requirements of the site.

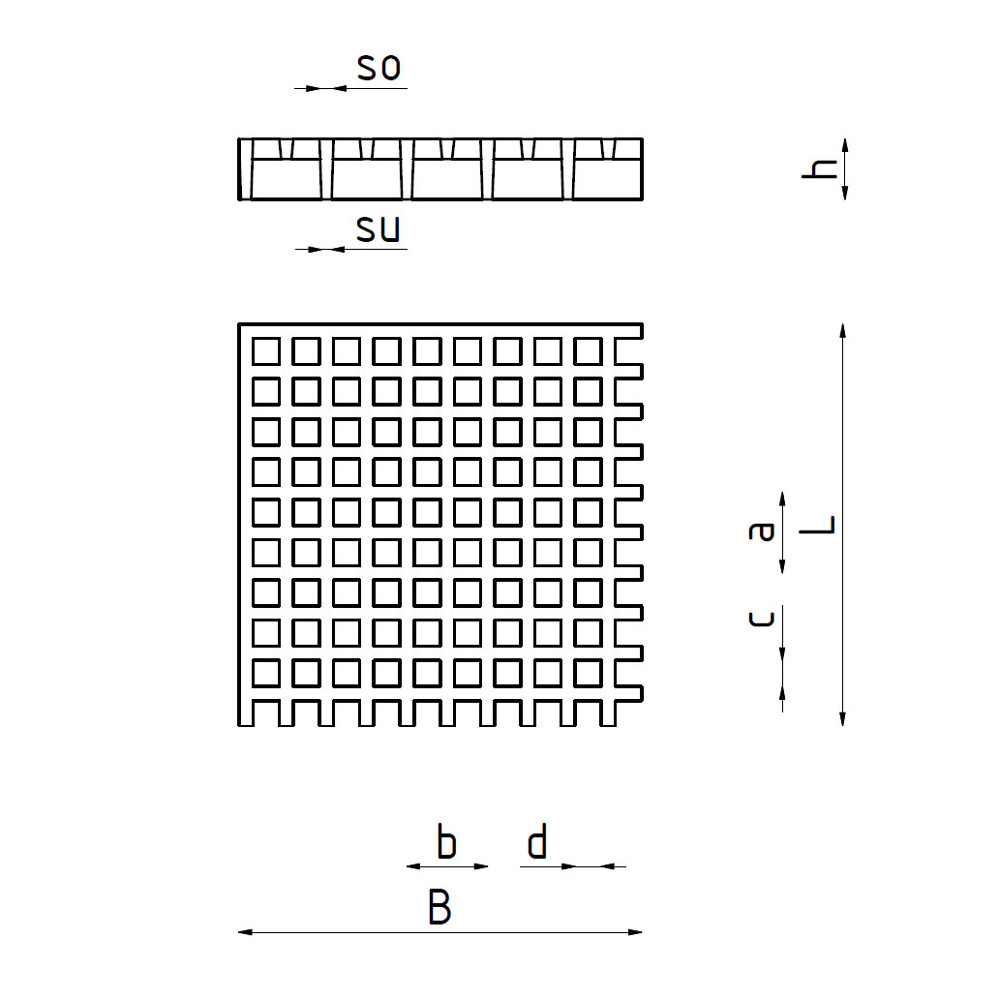

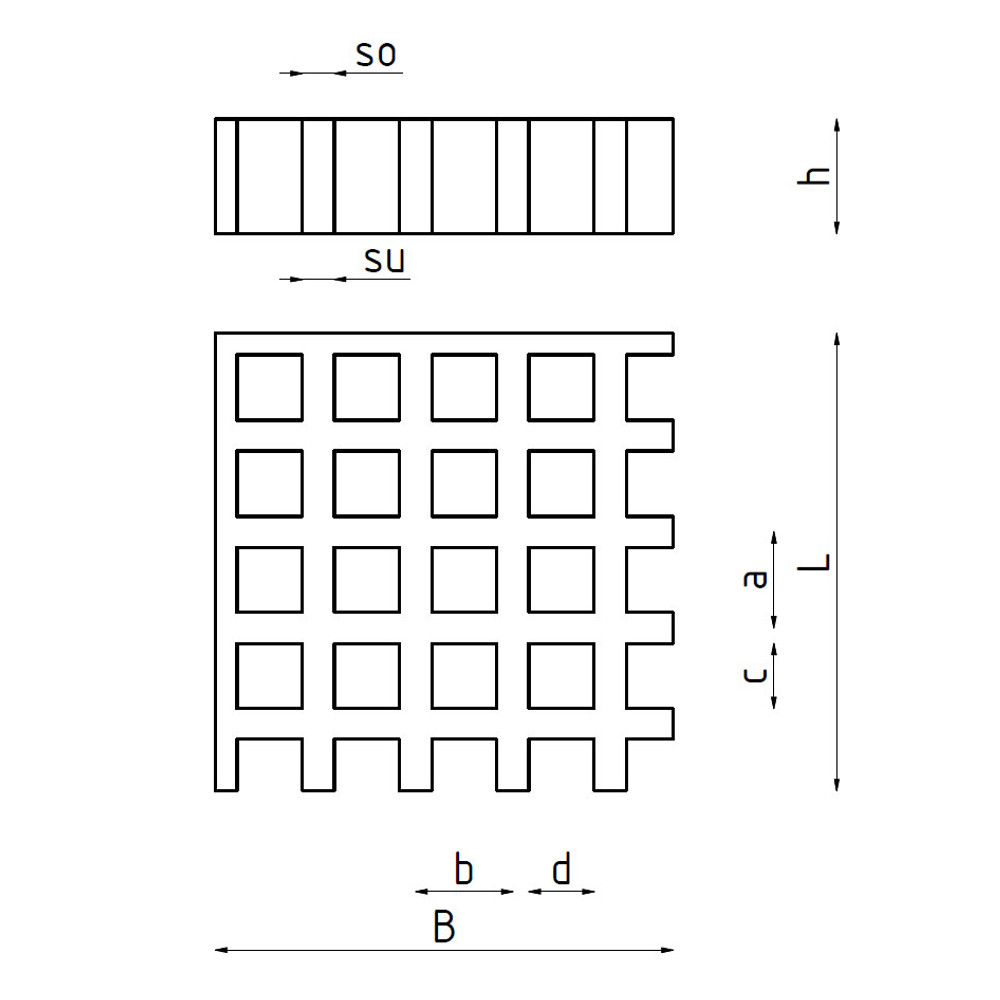

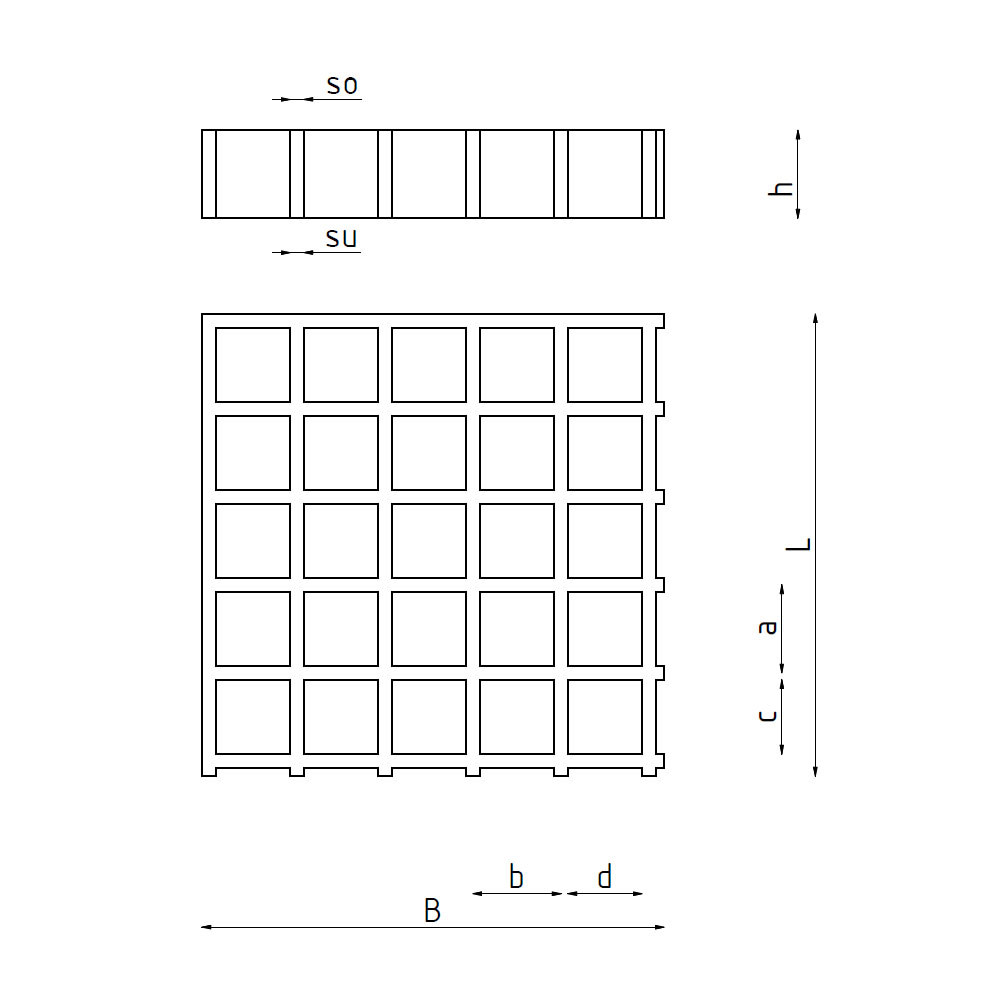

Square mesh

bold italic = in stock

CTS type mesh
(a x b) in mm
open mesh
(c x d) in mm
height
(h) in mm
bar thickness
in mm so/su
size
(L x B) in mm
weight
in kg/m²
open area
in %
MO-13-38x38 38,1x38,1 32,1x32,1 13 6/5 3665x1226 6 71
MO-13-50x50 50,8x50,8 44,8x44,8 13 6/5 3665x1226 5,5 78
MO-25-38x38 38,1x38,1 31,6x31,6 25 6,5/5 3050x1525, 3665x1226, 4010x1226, 4010x1530 12,5 69
MO-25-40x40 40x40 33,5x33,5 25 6,5/5 4047x1007, 4047x1247, 4047x1527 12 70
MO-25-50x50 50,8x50,8 43,8x43,8 25 7/6 3665x1226, 4020x1531 11,5 74
MO-30-38x38 38,1x38,1 31,6x31,6 30 6,5/5 3050x1525, 3665x1226, 4010x1226, 4046x1525 14,6 69
MO-30-40x40 40x40 33x33 30 7/5 4047x1007, 4047x1247, 4047x1527 14,2 68
MO-38-38x38 38,1x38,1 31,1x31,1 38 7/5 3050x1525, 3665x1226, 4046x1530 19,5 67
MO-38-40x40 40x40 33x33 38 7/5 4047x1007, 4047x1247, 4047x1527 19,2 68
MO-40-50x50 50,8x50,8 43,8x43,8 40 7/5 4530x1226 17,5 74
MO-40-83x83 83x83 76x76 40 7/5 4007x1007 11 84
MO-50-50x50 50,8x50,8 43,8x43,8 50 7/5 3665x1226 21 74


Micro - Mini - Mesh

bold italic = in stock

CTS type mesh
(a x b) in mm
open mesh
(c x d) in mm
height
(h) in mm
bar thickness
in mm so/su
size
(L x B) in mm
weight in
kg/m²
open area
in %
MI-14-20x20 20x20 13,5x13,5 14 6,5/5 4047x1007, 4047x1247 10,5 46
MI-22-19x19 19x19 12,5x12,5 22 6,5/5 3665x1225 14,6 43
MI-22-20x20 20x20 13,5x13,5 22 6,5/5 4047x1247, 4047x1527 13,5 46
MI-25-13x13 13x13 8x8 25 6,5/5 4047x1007, 4047x1247, 4047x1527 17,8 36
MI-25-19x19 19x19 12,5x12,5 25 6,5/5 3665x1226 16,8 43
MI-25-20x20 20x20 13,5x13,5 25 6,5/5 4047x1007, 4047x1247, 4047x1527 16,8 46
MI-30-13x13 13x13 8x8 30 6,5/5 4047x1007, 4047x1247, 4047x1527 19,1 36
MI-30-19x19 19x19 12,5x12,5 30 6,5/5 3665x1226, 4046x1530 18,8 43
MI-30-20x20 20x20 13x13 30 7/5 4047x1007, 4047x1247, 4047x1527 18,3 42
MI-30-26x26 26x26 19x19 30 7/6 4000x1530, 4011x1150 15,3 53
MI-38-13x13 13x13 8x8 38 6,5/5 4047x1007, 4047x1247, 4047x1527 23,8 36
MI-38-19x19 19x19 12,5x12,5 38 6,5/5 3665x1226, 4010x1226 23,5 43
MI-38-20x20 20x20 13x13 38 7/5 4047x1007, 4047x1247, 4047x1527 23,2 42
MI-38-26x26 26x26 20x20 38 6/5 4050x1000, 4015x1517 22 59
MI-50-25x25 25,4x25,4 17,4x17,4 50 8/6 3665x1225 28,5 47
MI-50-26x26 26x26 18x18 50 8/6 3670x1210 28 48

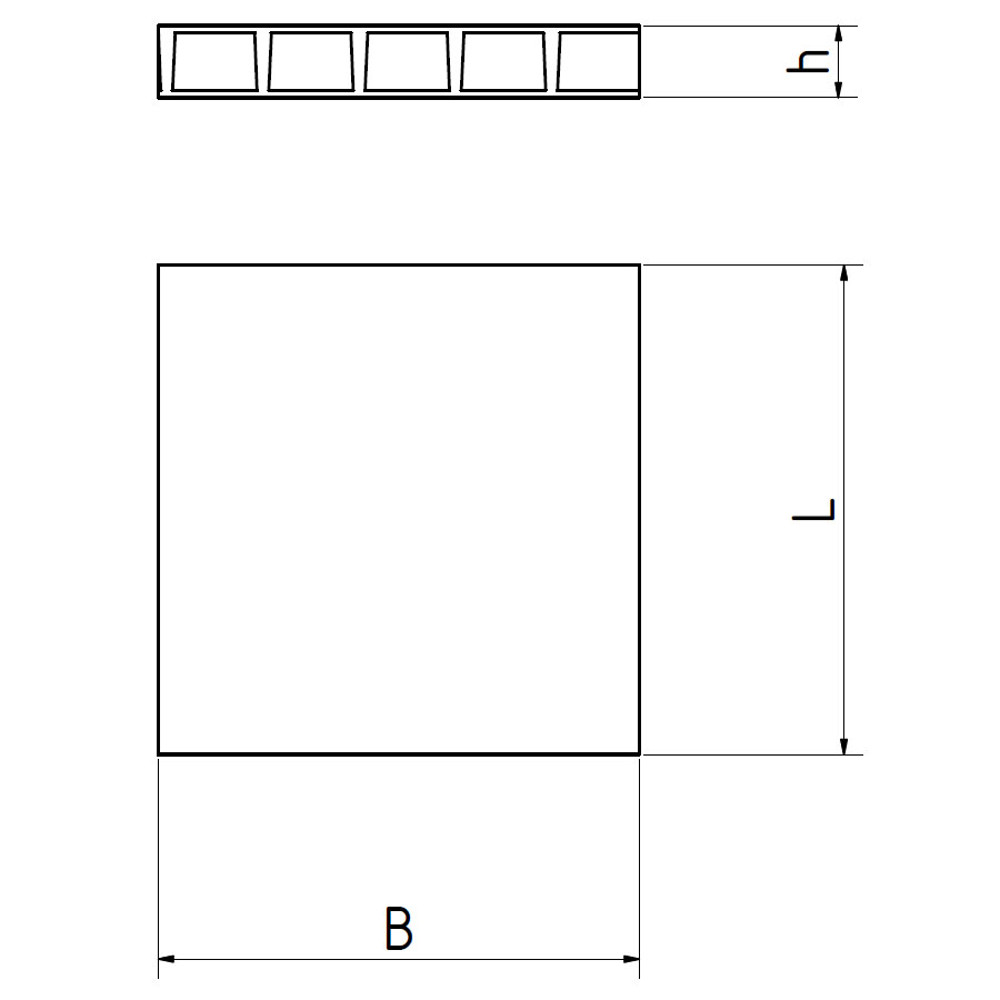

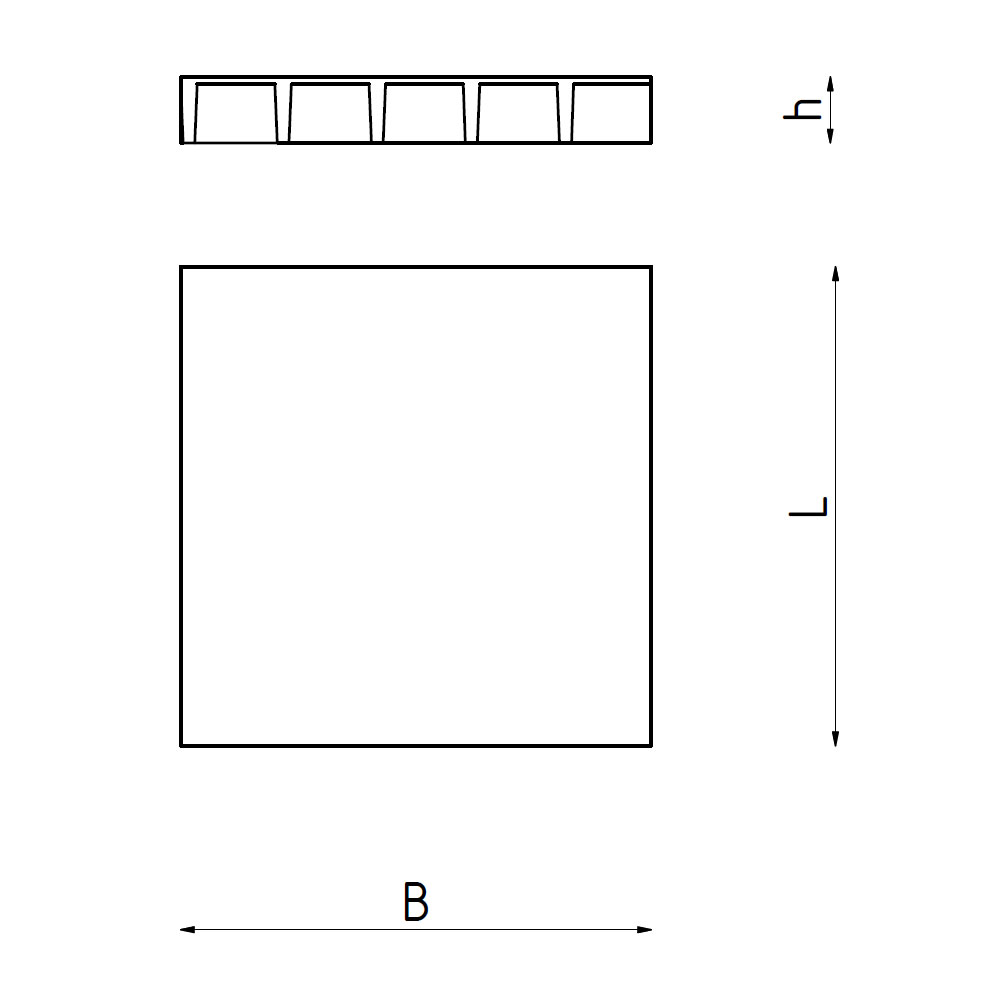

Cover

bold italic = in stock

CTS type height
(h) in mm
size
(L x B) in mm
weight
in kg/m²
DP-28 28 (25 + 3) 3665x1226, 4047x1007 18,5
DP-33 33 (30 + 3) 3055x1525, 3665x1226, 4047x1007, 4047x1247 21
DP-41 41 (38 + 3) 3055x1525, 3665x1226, 4047x1007, 4047x1247 35
DP-54 54 (50 + 4) 3665x1226 32
DP-63 63 (60 + 3) 3665x1226 57
DP-105 105 (100+5) 4420x575 38,5


Sandwichplate

bold italic = in stock

CTS type height
(h) in mm
size
(L x B) in mm
weight
in kg/m²
SP 30 30 (3 + 24 + 3) 3665x1226, 4047x1007, 4047x1527 24,3
SP 40 40 (3 + 34 + 3) 3665x1226, 4047x1007, 4047x1527 31
SP 54 54 (3 + 48 + 3) 3665x1226 36


HD-grating

bold italic = in stock

CTS type mesh
(a x b) in mm
open mesh
(c x d) in mm
height
(h) n mm
bar thickness
in mm so/su
size
(L x B) in mm
weight
in kg/m²
open area
in %
HD-50-38x38 38x38 28,5x28,5 50 9,5/7,5 3665x1226 42 56
HD-60-38x38 38x38 27,5x27,5 60 10,5/8,5 3665x1226 50 52
HD-70-38x38 38x38 27x27 70 11/9 3665x1226 59 51

Stair Tread

bold italic = in stock

CTS type mesh
(a x b) in mm
open mesh
(c x d) in mm
height
(h) in mm
bar thickness
in mm so/su
size
(L x B) in mm
weight
in kg/m²
open area
in %
ST-38-38x38 38,1x38,1 31,8x31,8 38 7/5 3665x272 20 67
ST-38-152x25 152,4x25,4 144,4x17,4 38 8/6,5 3665x286 22 65

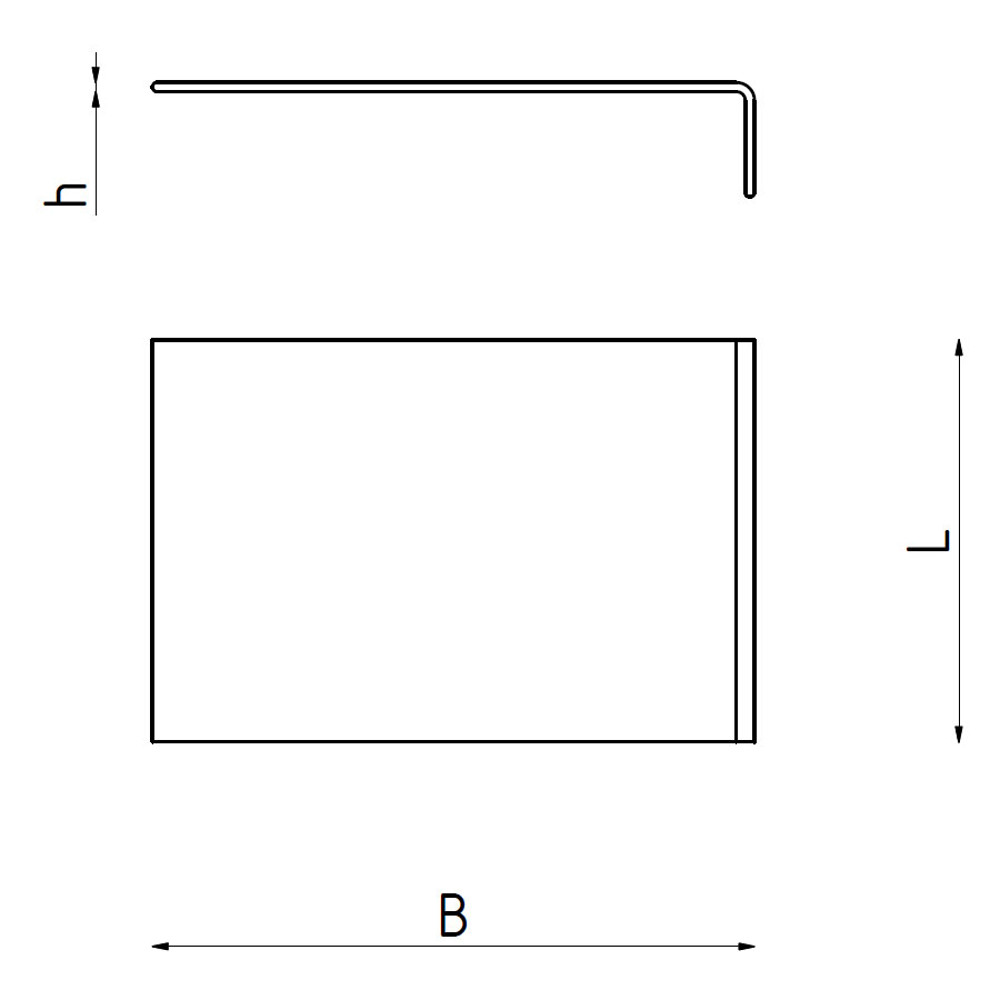

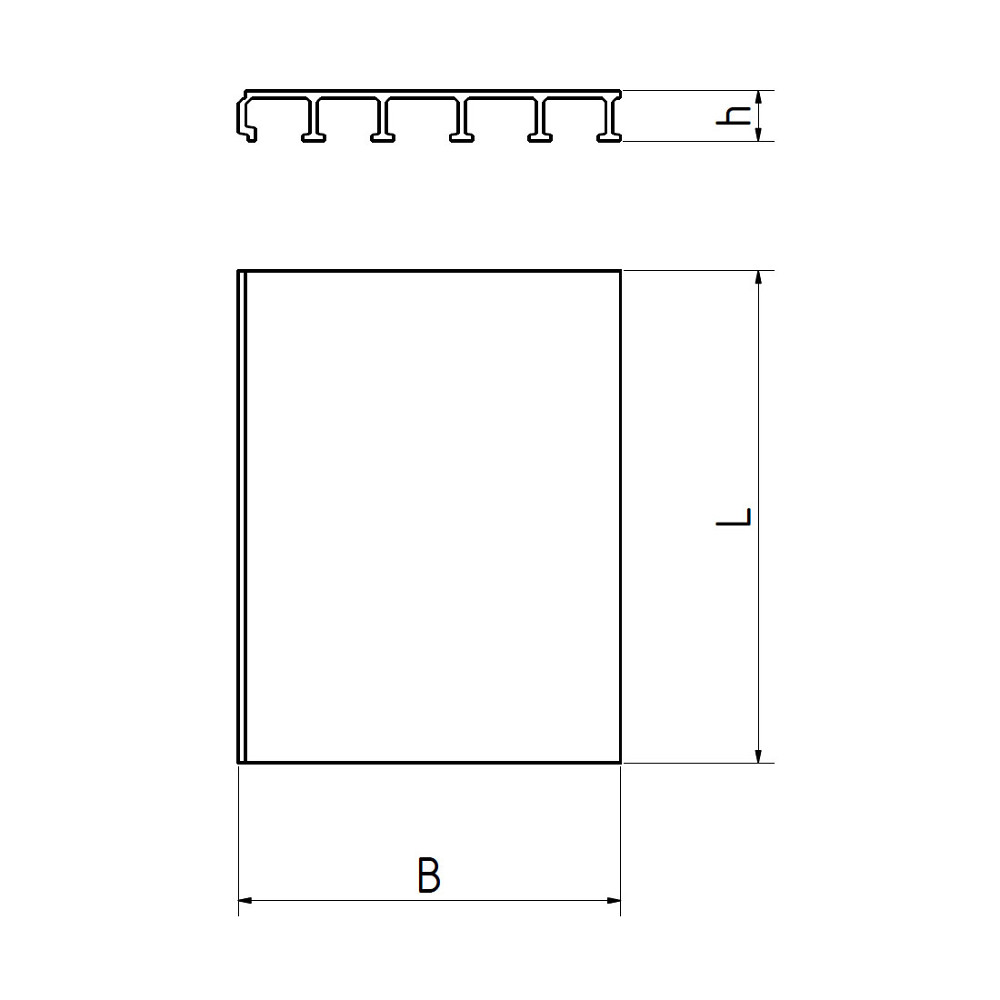

Stair cover

bold italic = in stock

CTS Typ height
(h) in mm
surface size
(LxB) in mm
weight
in kg/m²
ASB 3 gritted 3000x300x40x3 2,8

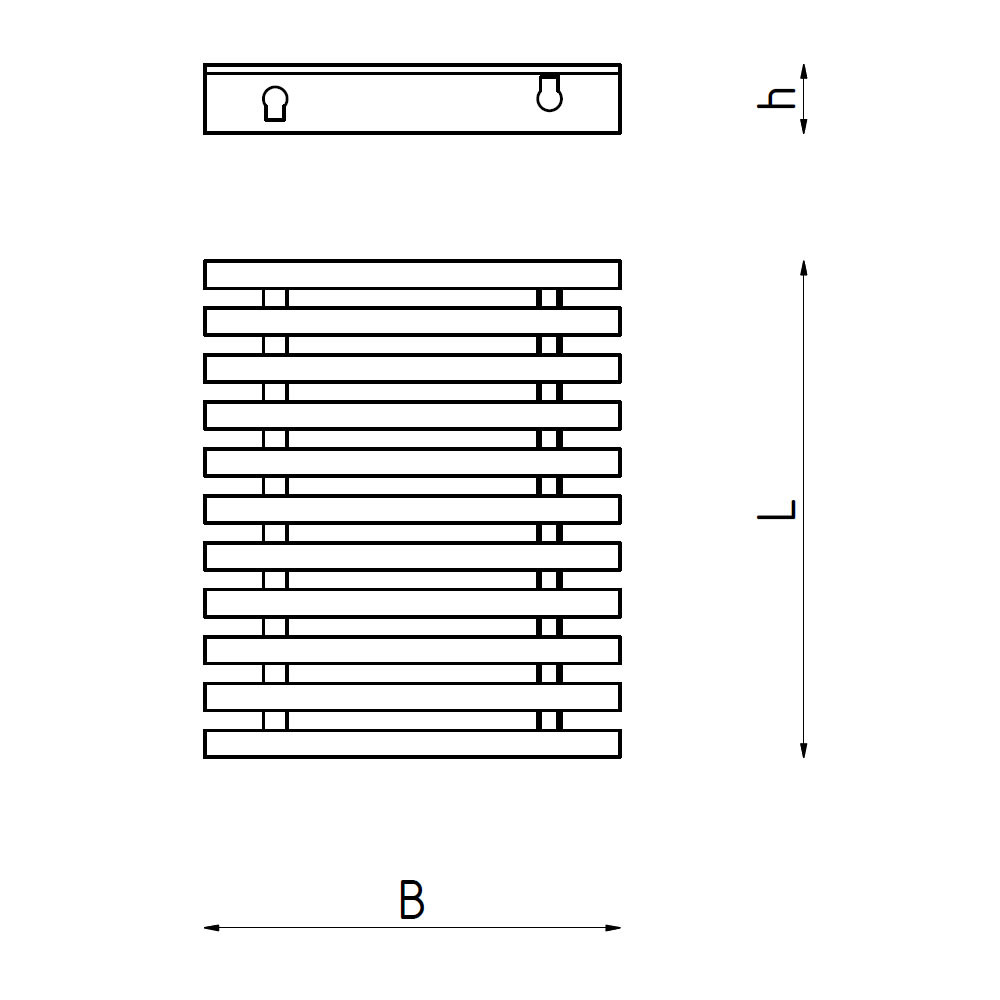

Plank

bold italic = in stock

CTS typ height
(h) in mm
length
(L) in mm
width
(B) in mm
weight
in kg/m
surface
pl40hd 40 10000 500 9,8 closed / gritted

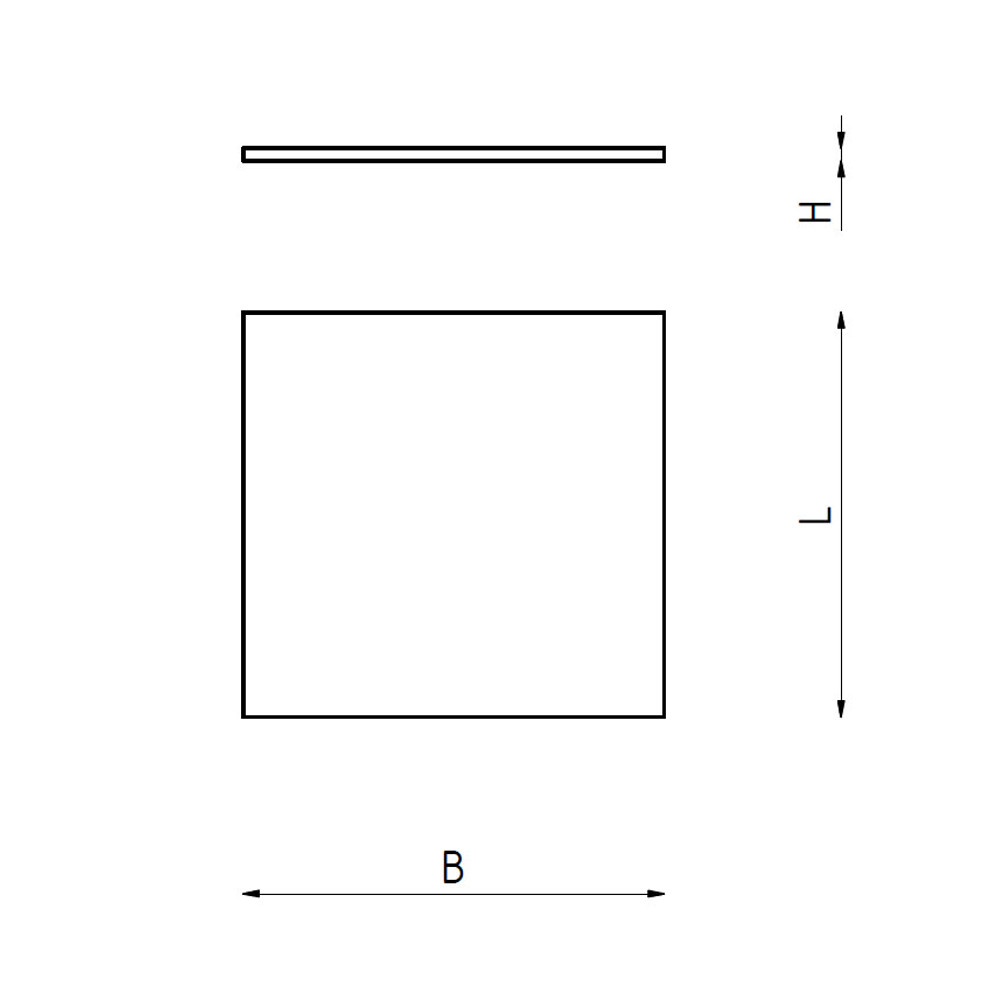

Plate

Blue = in stock

Typ h in mm size (L x B) in mm weight
in kg/m²
surface
platte3 3 4047x1007, 4000x1226, 3665x1226 5,5 smooth
platte3 3 4047x1007, 4000x1226, 3665x1226 5,7 diamant
platte3 3 4047x1007, 4000x1226, 3665x1226 7 gritted
platte4 4 4047x1007, 4000x1226, 3665x1226 7,7 smooth
platte4 4 4047x1007, 4000x1226, 3665x1226 7,8 diamant
platte4 4 4047x1007, 4000x1226, 3665x1226 9,8 gritted

Profile grating

Blue = in stock

Typ h in mm L in mm B in mm weight
in kg/m²
open area
in %
pu-T2560 25 max 6100 max 1220 8,5 60
pu-T2550 25 max 6100 max 1220 10,5 50
pu-T2540 25 max 6100 max 1220 12 40
pu-I2560 25 max 6100 max 1220 11 60
pu-I2550 25 max 6100 max 1220 14 50
pu-I2540 25 max 6100 max 1220 16 40
pu-I3060 30 max 6100 max 1220 15,3 60
pu-I3050 30 max 6100 max 1220 17,9 50
pu-I3040 30 max 6100 max 1220 21 40
pu-I3860 38 max 6100 max 1220 18,1 60
pu-I3850 38 max 6100 max 1220 22,3 50
pu-I3840 38 max 6100 max 1220 26,5 40
pu-T5050 50 max 6100 max 1220 17,4 50
pu-T5033 50 max 6100 max 1220 22,6 33

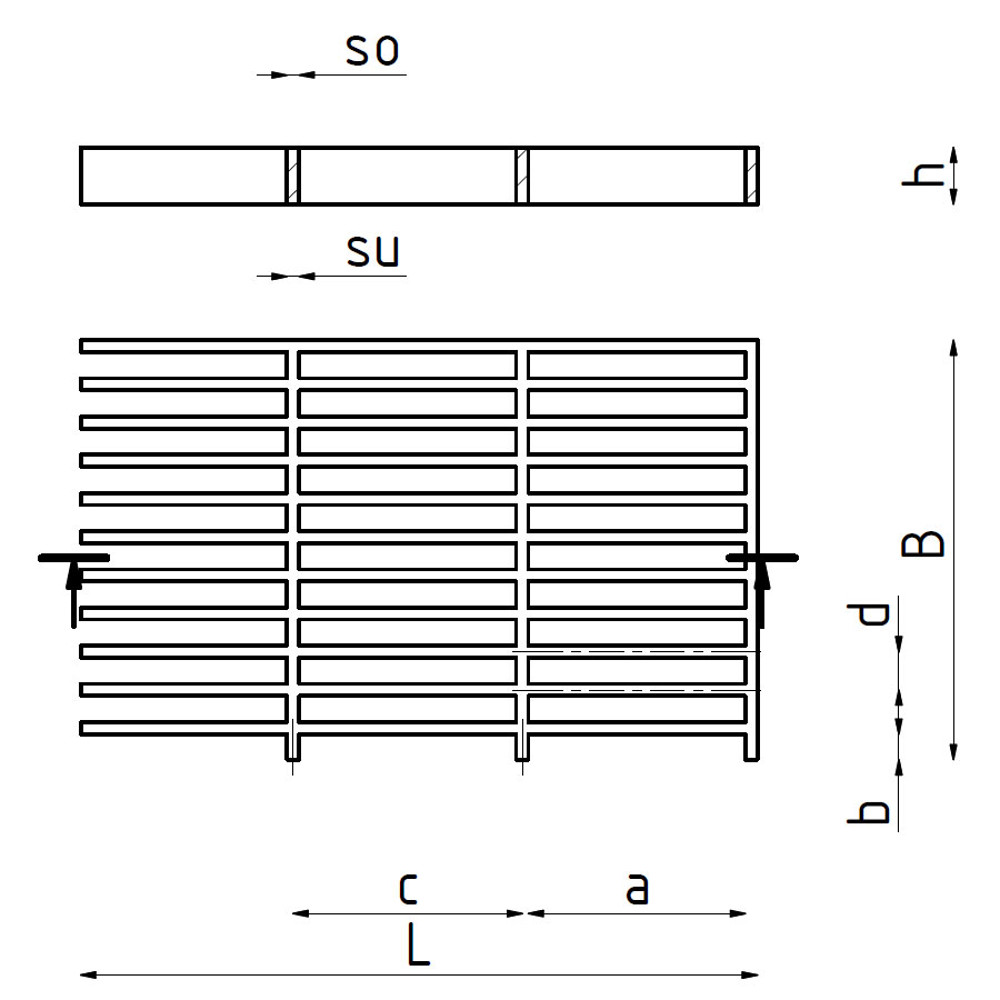

Rectangular mesh

bold italic = in stock

CTS type mesh
(a x b) in mm
open mesh
(c x d) in mm
height
(h) in mm
bar thickness
in mm so/su
size
(L x B) in mm
weight
in kg/m²
open area
in %
MO-38-100x38 101,6x38,1 93,6x30,1 38 8/6 3665x1226
(Tragstäbe längs)
16 73
MO-38-152x25 152,4x25,4 144,4x17,4 38 8/6,5 3665x1226
(Tragstäbe längs)
22,5 65
MO-100-191x93 191,5x93,5 177,5x79,5 100 14/11 4420x575
(Tragstäbe längs)
33,5 79

All types of GRP gratings are also available with covered plate (smooth, gritted, diamant surface).
Also in sandwich version with top and bottom plate.
